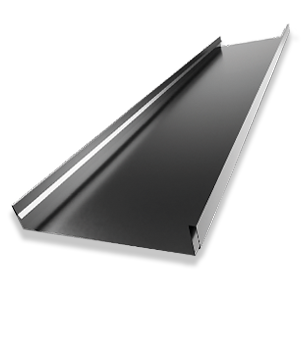

1.75"
Snap Lock

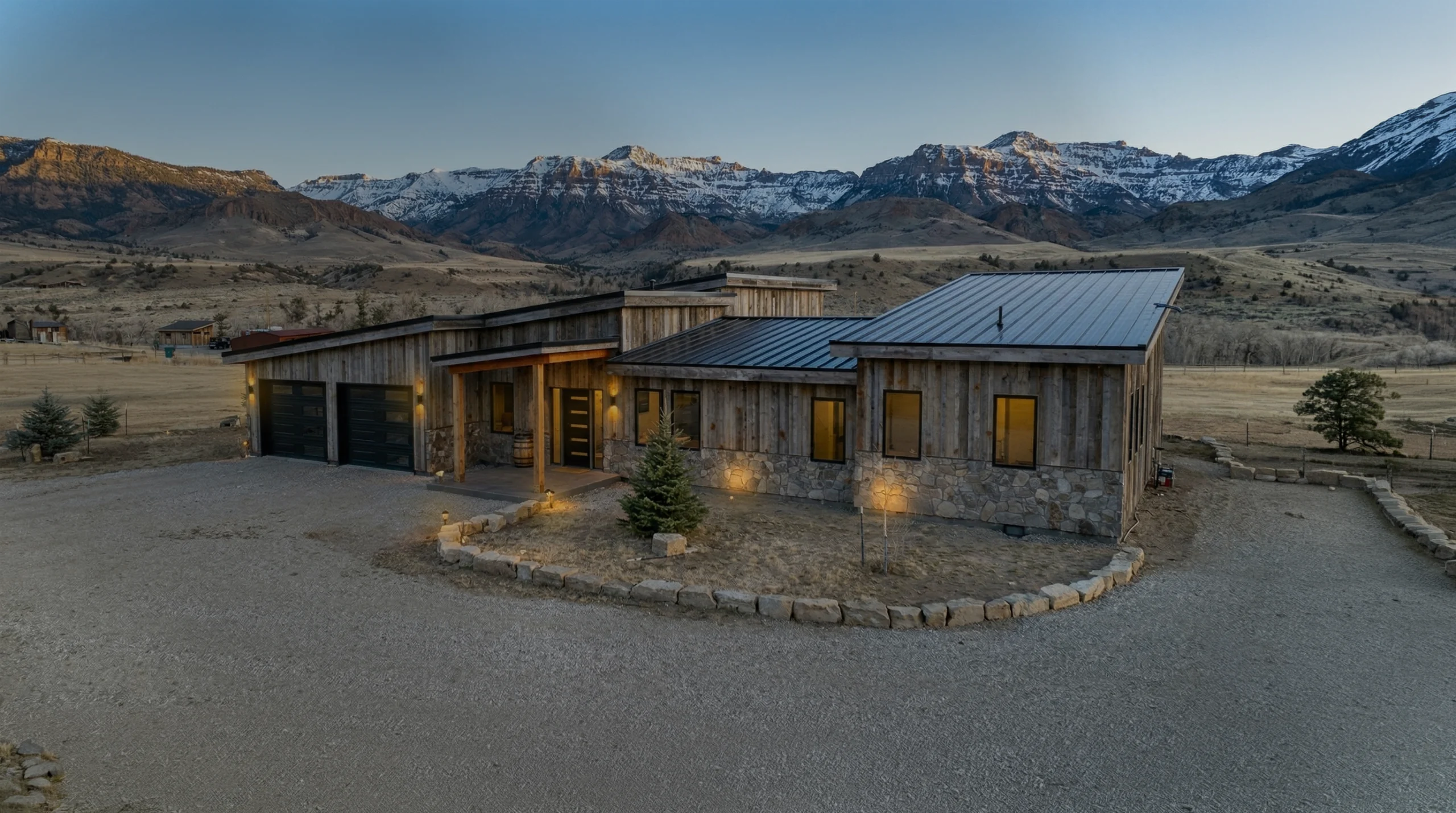

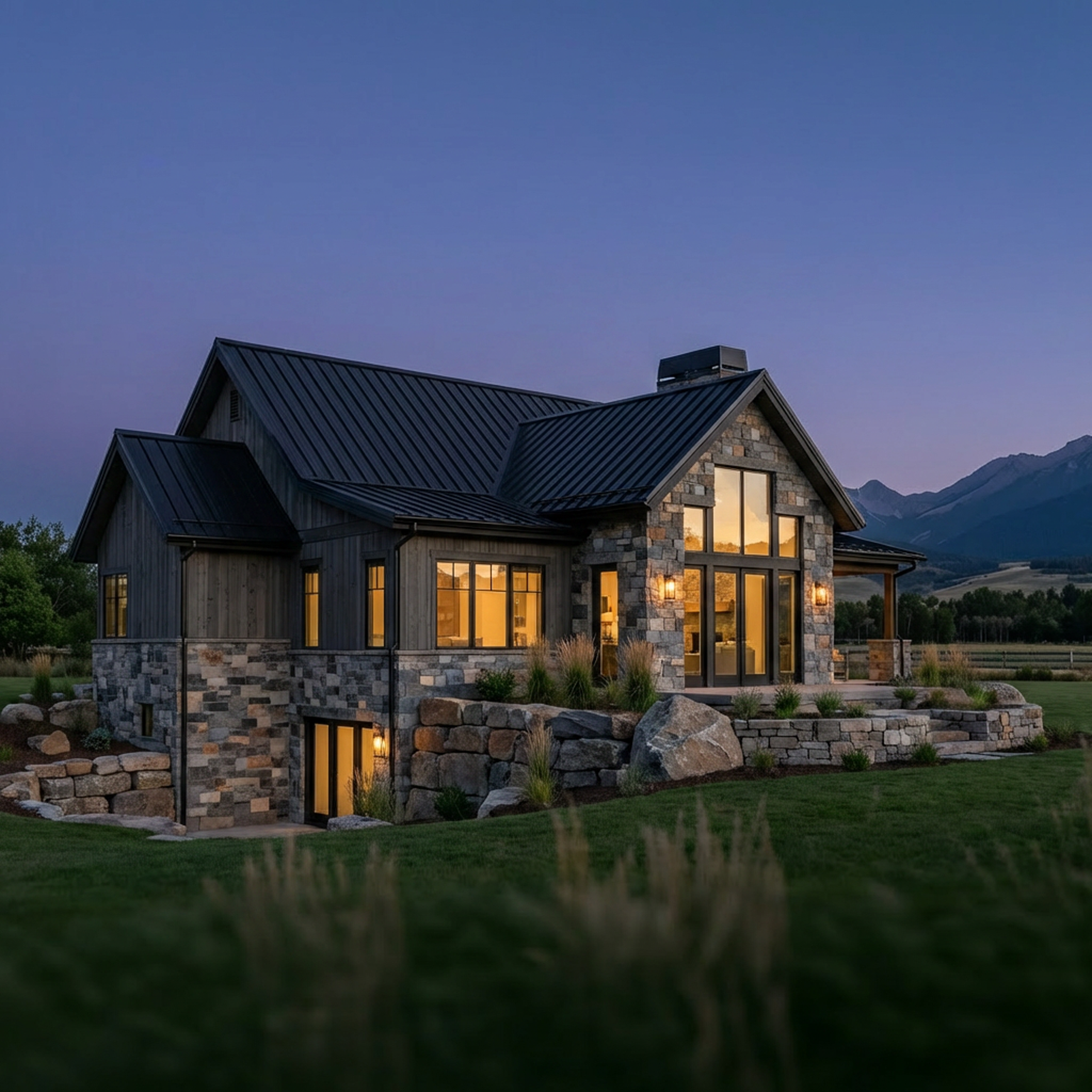

The 1 3/4″ Snap Lock panel offers the clean look of standing seam with the durability of American-made steel, featuring a clip-fastened system that allows for thermal movement, reducing stress on the panel over time. With its sleek profile and dependable performance, it serves as a reliable roofing solution for residential and light commercial projects
The 1 3/4″ Snap Lock panel is engineered for performance, offering strong wind uplift resistance, durable impact performance, and a Class A fire rating when installed as part of a tested assembly—providing long-term protection and peace of mind.
1.75"
Snap Lock

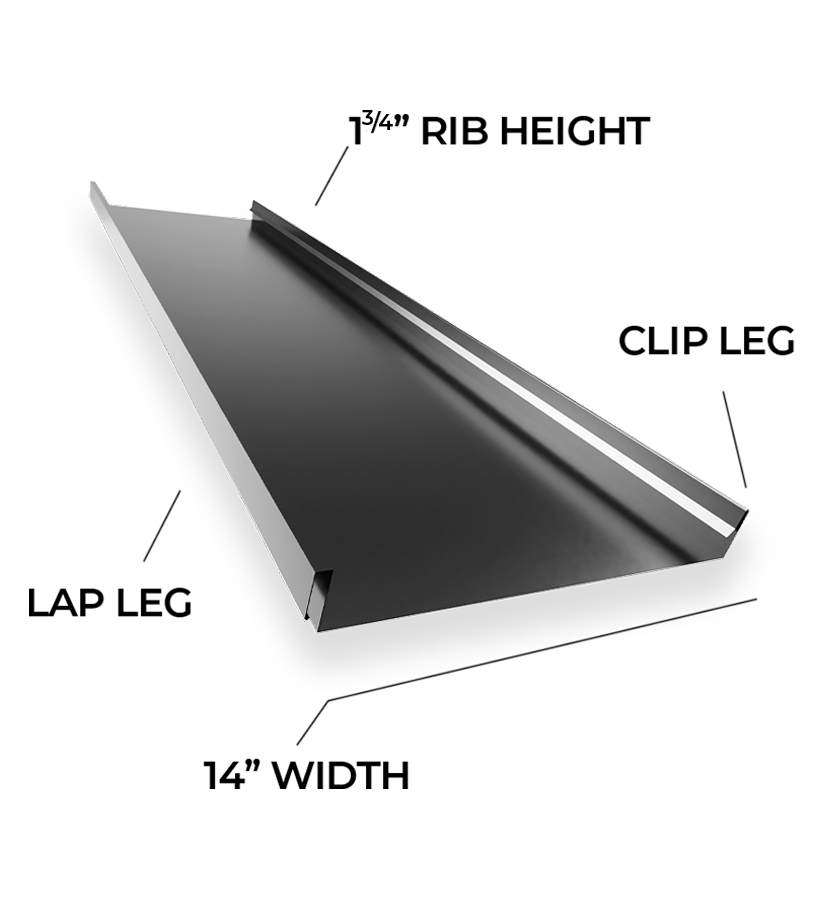

The 1 3/4″ Snap Lock panel delivers a clean standing seam appearance with a clip-fastened system that allows for thermal movement, offering long-term performance and flexibility. Available in 26 and 24 gauge options with 14″ coverage, it provides a durable, streamlined solution ideal for residential and light commercial applications.
The 1 3/4″ Snap Lock panel is engineered for performance, offering strong wind uplift resistance, durable impact performance, and a Class A fire rating when installed as part of a tested assembly—providing long-term protection and peace of mind.
1-3/4" SNAP LOCK
Panel Information
Standing Seam
Roofing & Siding
UL Wind Uplift Rated
Certified to meet UL wind uplift standards for dependable performance in high-wind conditions.
cAPABLE oF lONG rUNS
Designed for long runs, the 1 3/4″ Snap Lock panel expands and contracts on clips and is available in both striated and non-striated options.
TREDNING COLORS
Ash Gray
Barnwood
Black
Burnished Slate
Charcoal
Copper Metallic
Dark Bronze
Dark Brown
Dark Gray
Dark Gray
Dark Red
Evergreen
Gallery Blue
Galvalume
Koko Brown
Rustic Red
Smooth Cedar
Taupe
TREDNING COLORS
Ash Gray
Barnwood
Black
Burnished Slate
Charcoal
Copper Metallic
Dark Bronze
Dark Brown
Dark Gray
Dark Gray
Dark Red
Evergreen
Gallery Blue
Galvalume
Koko Brown
Rustic Red
Smooth Cedar
Taupe

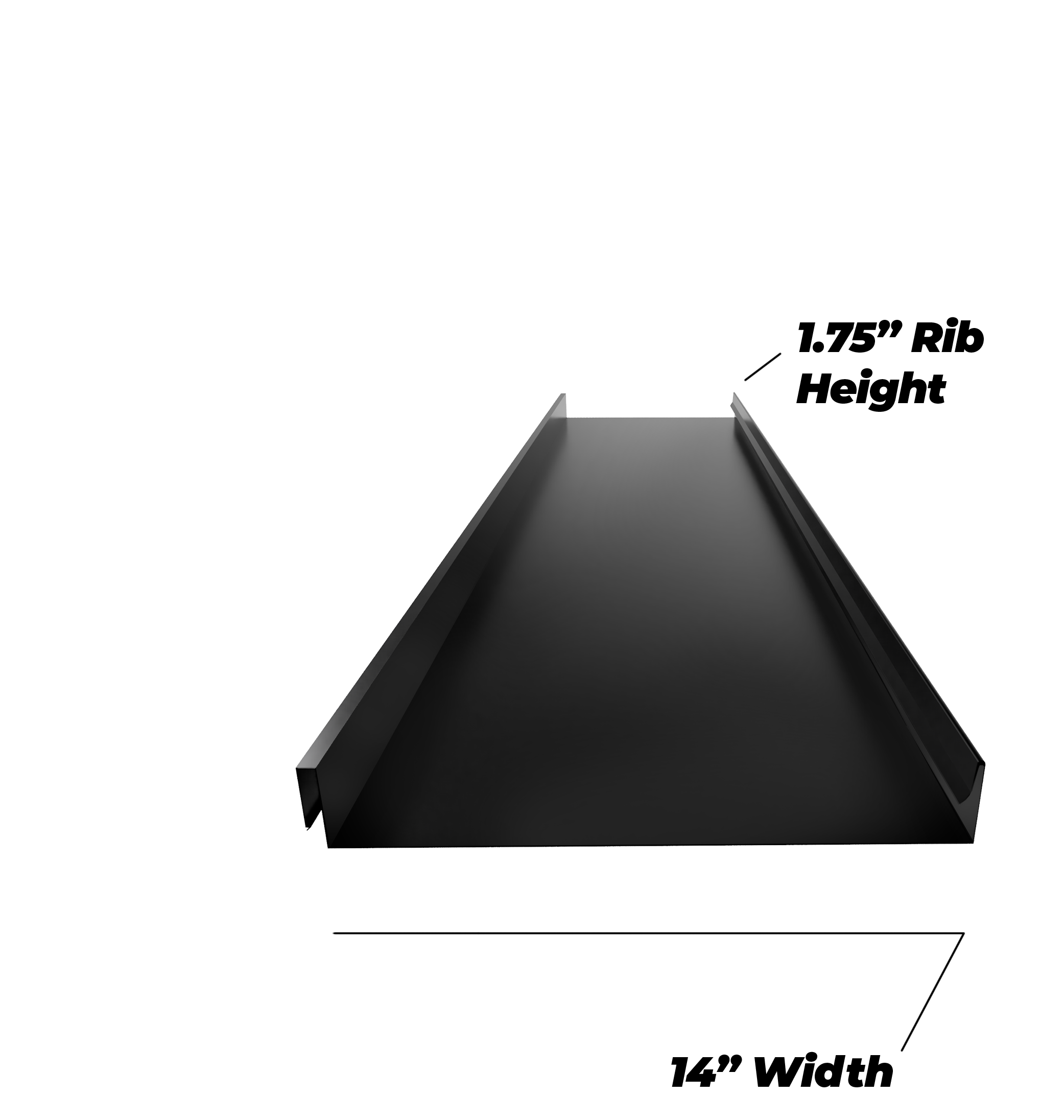

Panel Data

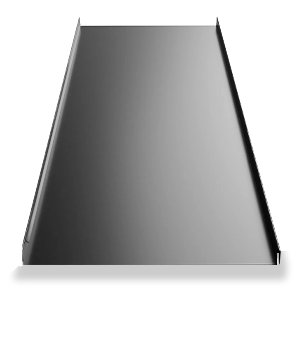

1.75" Snap Lock
The 1.75″ Snap Lock panel is available in both 26-ga and 24-ga color options, providing flexibility in strength, budget, and application. Panel is available in striated and smooth finish.
Long Run Capable.
Long panel runs are achievable with on-site roll forming, allowing panels to be produced directly from coil at the jobsite while using expansion clips to accommodate thermal movement over extended lengths. With proper design—such as striations, correct pinning, and a flat substrate—these systems can deliver clean, high-performance results even on large-scale projects.
UL - Wind Uplift Rated
A UL wind uplift rating verifies a panel’s ability to resist uplift forces caused by high winds, tested under controlled pressure conditions. The 1-3/4" Snap Lock Pannel meets UL 580 Class 90, confirming it can withstand significant wind loads while maintaining secure attachment and long-term performance.
Learn more about the 1-3/4″ Snap Lock’s installation process and trim details by downloading the full installation manual.

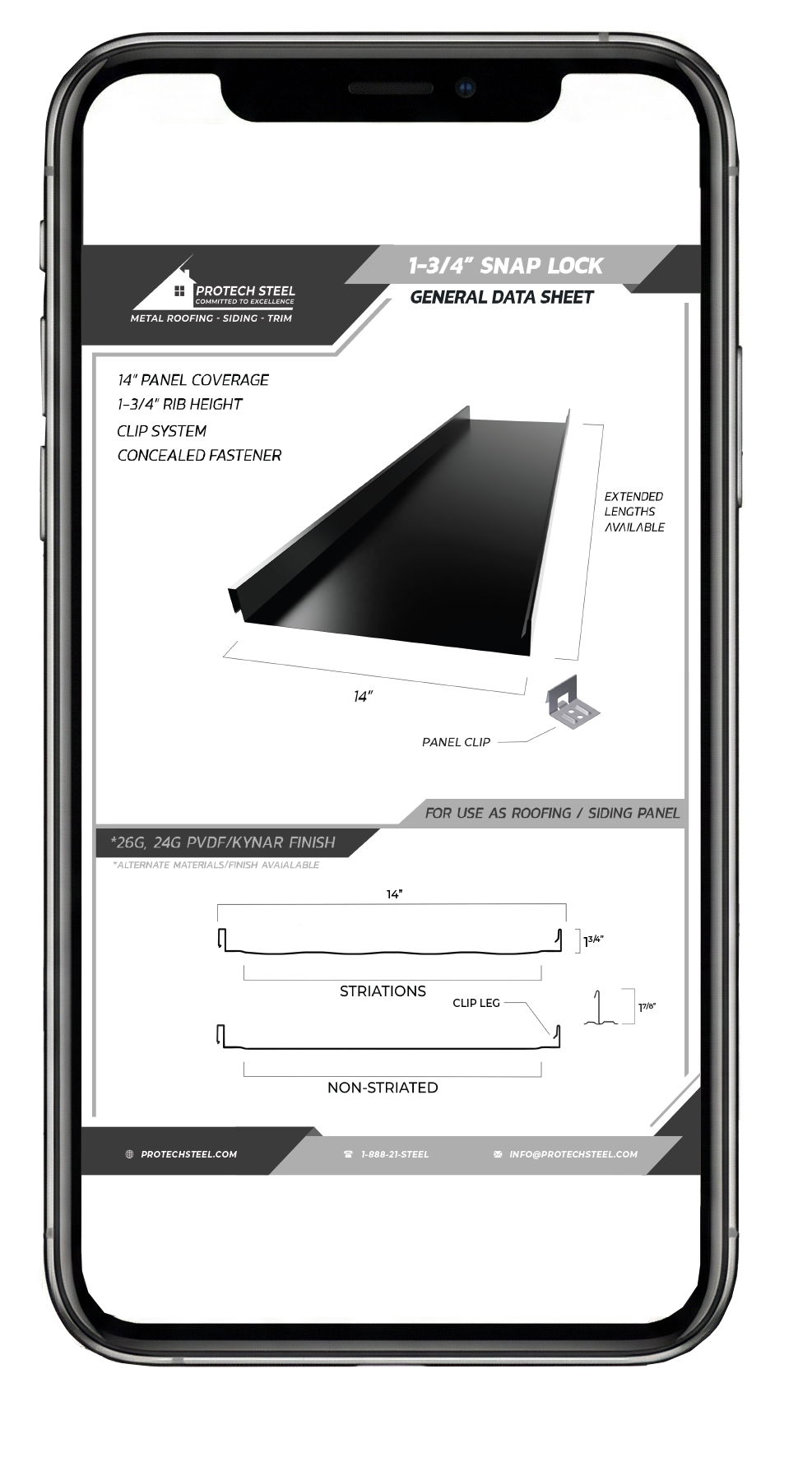

1-3/4" SNAP LOCK
GENERAL DATA SHEET
A General Data Sheet is a concise technical overview that highlights a product’s key specifications and performance ratings. For the 1-3/4″ Snap Lock Panel, it includes panel dimensions, gauge and color options, UL testing data, warranty information, and approved residential and light commercial applications.
